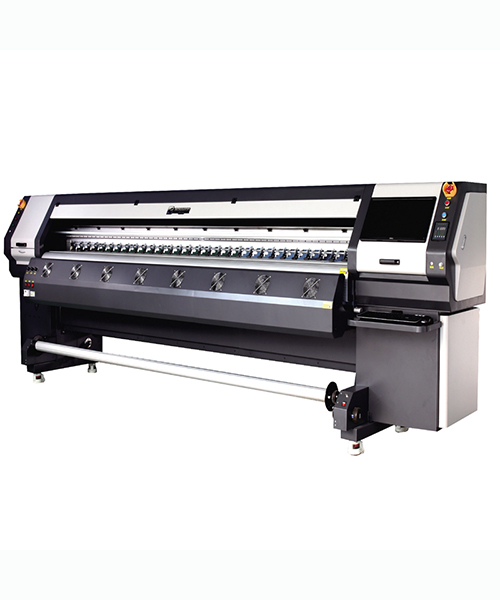

ADVA-- K3208 solvent printer with Konica 512i head

ADVA-- K3208 solvent printer

Konica 512i head printer.jpg

1.Using Konica KM512i printhead/30pl, faster speed, enrich the saturability, bright color with the picture.

2.Having the particular precision control technolog for the ink smudge, made the image more smoothness.

3.One piece grider, stronger beam for the carriager, improving the printing carriager’s stability and precision.

4.Industrial winding and putting system, comfirm the high precision, without crimping, printing with good quality.

5.Using high power Panasonic servo motor and three-level cartridge, made the high-speed printing more stability.

Model	ADVA-- K3208
Printhead	Konica 512i
Ink droplet	30pl
Printhead quantity	4/8
Color	4
Speed	2pass 8 heads 240-260 sqm/hr
	3pass 8 heads 180-190 sqm/hr
	2pass 4 heads 120-130 sqm/hr
	3pass 4 heads 90-95 sqm/hr
Resolution	720dpi
Adjusttable height	1-10mm
Maximun printhead width	3.2m
Ink type	Solvent ink
Feeding & take-up system	Auto feeding system (Equipped). Auto take-up system (Option)
Material	PVC flex banner, Vehicke Wrap Advertsing, One-way vision and so on.
Photo file format	PSD/DWG/HPG/HGL/PLT/PS/EPS/2PS
Printing process	Maintop direct output
Cleaning system	Automatic cleaning system (Protecting print head during night
Print interface	USB
Software	Maintop (Equipped), Photoprint/Wasatch (Option)
Machine packing size	480010301580mm
Gross weight	950kgs
